🇩🇪德國極致工藝：唱頭唱臂調整器：SMARTractor

描述

多年的經驗與聚精會神的心細調整，版主終究還是輸給了她（SMARTractor)

通常版主用一般的工具安裝唱臂唱頭，經過仔細教調，不敢說次次一百分，九十分以上的水準通常沒問題。

那天售價 NT $23,000超級條教規來到越點。SMARTractor 一上陣，市面上的調教規都給比下去了．．．

。。。。。方便，精準，多工，版主 Captain 極力推薦。。。。。

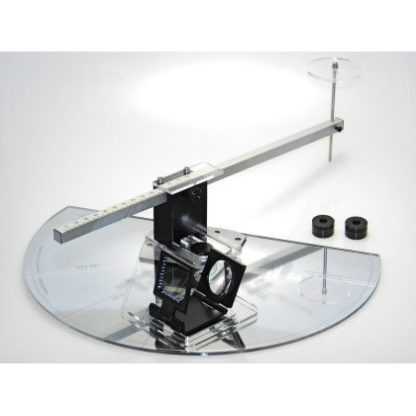

下圖為版主目前所看過功能最強大的唱臂唱頭安裝工具，有著儀器般的精確校正刻度。
圖片右上方的圓盤（有著精密校正刻度），是給唱臂軸承中心點不明確的唱臂使用。
中間右方的兩的黑色的中心軸套，共有三個尺寸，可吻合的套入市面上所有不同廠牌的轉盤中心軸。

對於資深有老花眼的愛樂者，設計者也貼心地將一個工程用的放大鏡結合在調教規上，唱針落點的水平與方位角可輕鬆讀出。

---

While the UNI-Protractor represents the most universal and versatile phono alignment tool ever introduced in high-end audio, it is an instrument which – due to it’s complexity and versatility – appeals more to professional users.

The serious audiophile who is interested in aligning – if only periodically – his analog front-end to the utmost precision does look for precision which comes handy and which is easy to operate.

To answer this request we have designed the SMARTractor – a direct off-spring of our UNI-Protractor.

The SMARTractor brings the same unparalleled precise tangential alignment for which the UNI-Protractor earned it’s laurels – PLUS the 0.05mm precise mounting distance measurement of the UNI-P2S.

---

An unique bundle of features:

• The SMARTractor comes with 5 (five) tangential curves combined in 1(one) template.
• the SMARTractor’s template is made from 3mm (= same thickness as 180 gr LP) strong premium grade german XT mirrored acrylic supplied by Evonik.
• no-error-possible single-point alignment with 3mm deep parallax (for ALL helping lines) – an extreme precise, easy and fast alignment.
• super easy to use with 1-point fixed setting for every tangential curve.
• all alignment lines are cnc-laser cut hairlines.
• incorporates real glass aluminum-frame magnifier with automatic focus jig for unrivaled precise magnified view during alignment.
• all 5 tangential alignments are based on true triangular positioning and thus are independent of effective length and thus suitable for ALL pivot tonearms, no matter what their effective length or mounting position.
• The SMARTractor further comes with in-built direct mounting distance – P2S -measurement with 0.05mm accuracy.
